Densitometro Oseo Ultrasound Bone Densitometer

Product Details:

Place of Origin:	China
Brand Name:	MSL
Model Number:	MSLBD05

Contact Now

Detailed Product Description

Power Source:	Electric	Warranty:	1 Year
After-sale Service:	Online Technical Support	Material:	Metal, Plastic
Shelf Life:	1years	Quality Certification:	Ce
Instrument Classification:	Class II	Safety Standard:	GB/T18830-2009
Probe:	0.5MHz ± 10% Broadband At 4.-6db: >60%	Measurement Time:	≤ 25 Seconds
Printer:	Optional	Power Supply:	100~240VAC
Measurement Parts:	Radius And Tibia	Measurement Mode:	Double Emission And Double Receiving
Measurement Parameters:	Speed Of Sound (SOS)	Test Repeatability:	OPR≤±1%
Measurement Accuracy:	SOS ≤ ± 2%

Product Description

Specification

item	value
Place of Origin	China
Brand Name	MSL
Model Number	MSLBD05
Probe	0.5MHz ± 10% Broadband at 4.-6db: >60%
Measurement time	≤ 25 seconds
printer	optional
Power supply	100~240VAC
Measurement parts	radius and Tibia
Measurement mode	double emission and double receiving
Measurement parameters	Speed of sound (SOS)
Test repeatability	OPR≤±1%
Measurement accuracy	SOS ≤ ± 2%

More details

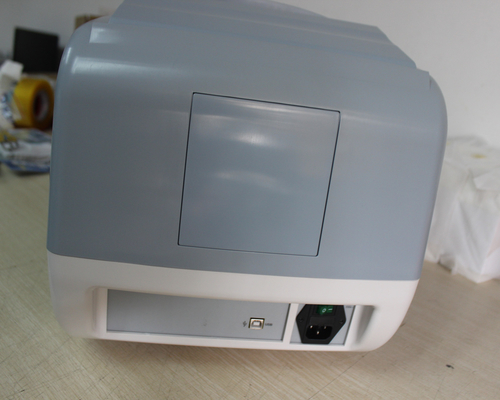

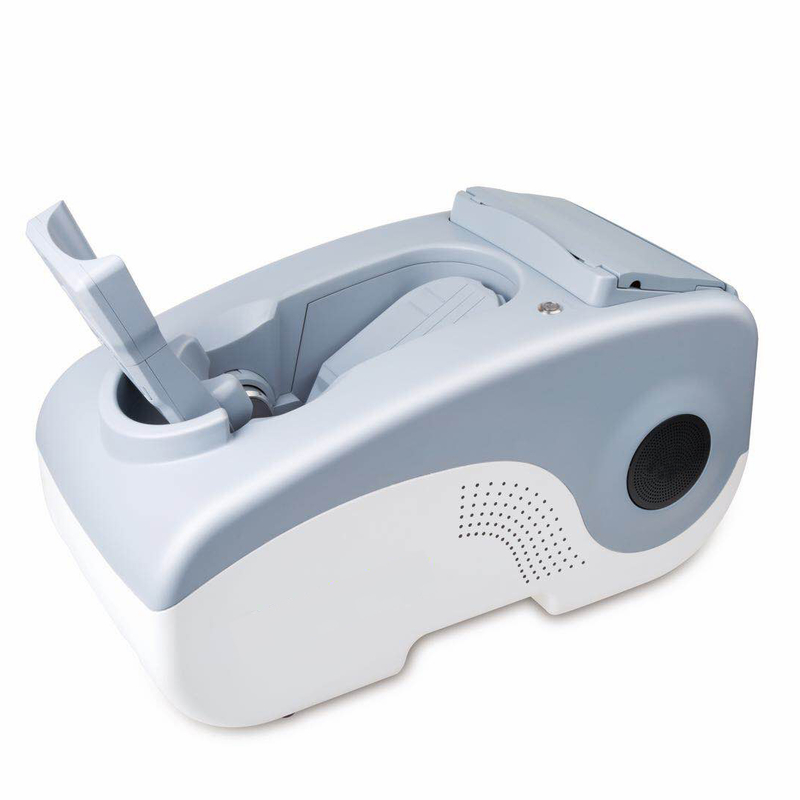

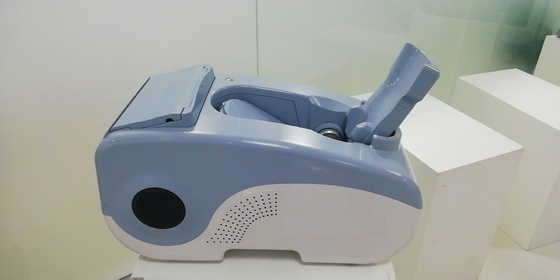

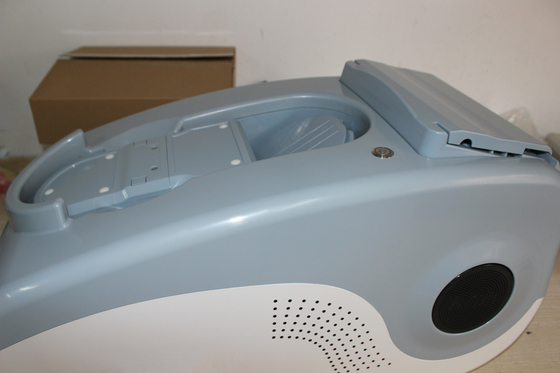

MSLBD05 Ultrasound bone densitometer

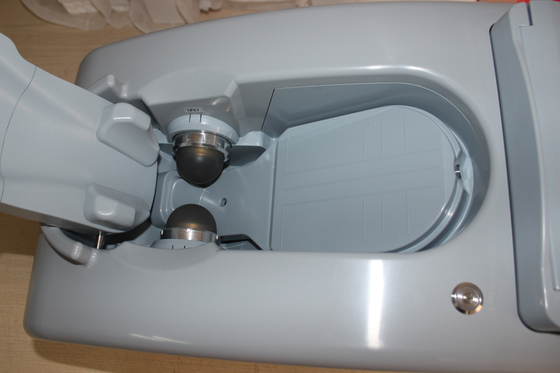

The computer ultrasonic module and probe emit ultrasonic beam. The beam penetrates the skin from the launch of the probe axial transmit to the probe receiver along the bone. And calculating the speed of sound(SOS) in the bone by the computer, get the TScore and ZScore according with the race database. Then get related information of the bone density from the ultrasonic physical characteristics
