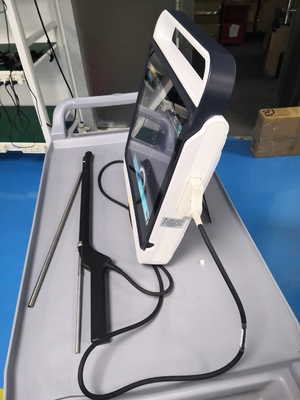

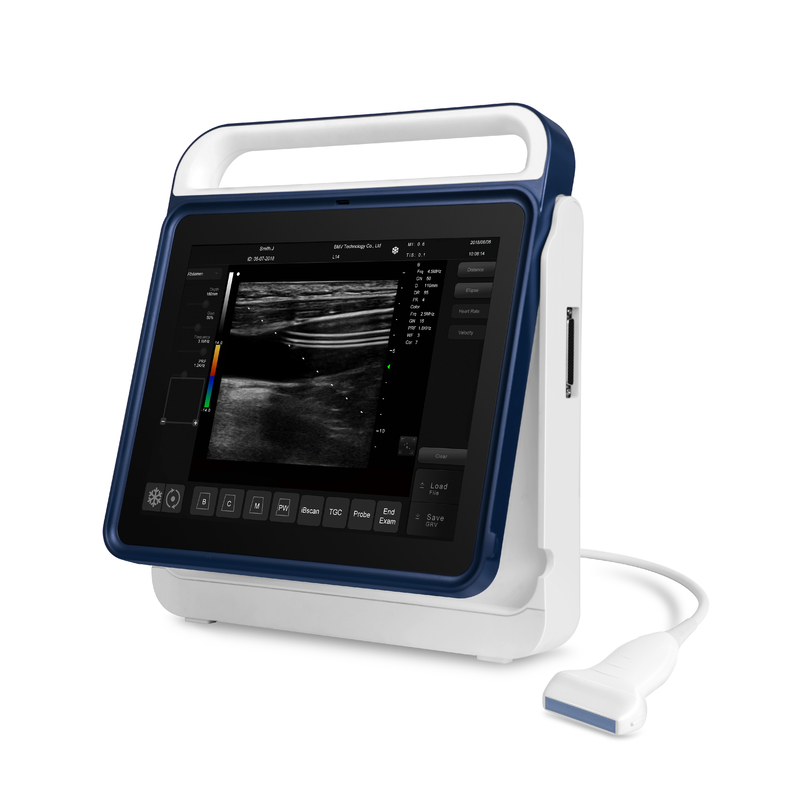

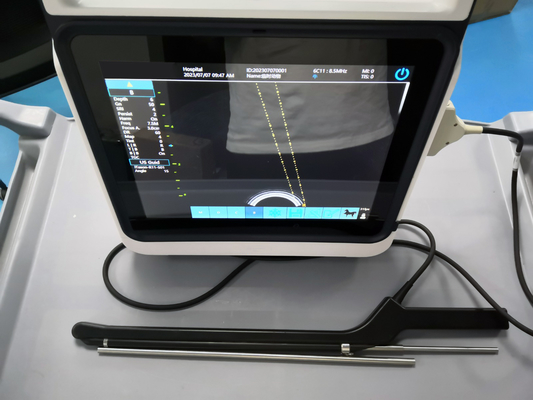

Name: Portable Vet Ultrasound Machine Veterinary Ultrasound Ovum Pick-Up Egg Collection Ultrasound Scanner
Brand: MEDSINGLONG CO LTD
SKU: MSLCU71
Availability: InStock

Home Products Portable Ultrasound

Portable Vet Ultrasound Machine Veterinary Ultrasound Ovum Pick-Up Egg Collection Ultrasound Scanner

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	MSL
Model Number:	MSLCU71

Contact Now

Detailed Product Description

Power Source:	Electric	Warranty:	1 Year
After-sale Service:	Online Technical Support	Material:	Metal, Plastic
Shelf Life:	3 Years	Quality Certification:	Ce
Instrument Classification:	Class II	Safety Standard:	GB/T18830-2009
Brand:	Ovum Pick-Up Ultrasound System	Model:	MSLCU71
Imaging Modes:	B/C/D Triplex Mode Dual Live: B/C,B/PW,B/M Dual Split: B/C, B/M, B/PW	Gray Scale Levels:	256
Transducer Type:	Convex Array,Linear Array,Endocavity Array	Transducer Frequency:	2 To15 Mhz
Scanning Depth:	Up To 351mm	Monitor:	15' High Resolution LCD Monitor With Tilting To View It Freely
Ultrasound Platform:	Based On Windows High Speed Hardware Platform	Transducer Element:	128

Product Description

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	MSL
Model Number	MSLCU71
Power Source	Electric
Warranty	1 Year
After-sale Service	Online technical support
Material	Metal, Plastic
Shelf Life	3 years
Quality Certification	CE
Instrument classification	Class II
Safety standard	GB/T18830-2009
Brand	Ovum Pick-Up Ultrasound System
model	MSLCU71
Imaging Modes	B/C/D triplex mode Dual live: B/C,B/PW,B/M Dual split: B/C, B/M, B/PW
Gray scale levels	256
Transducer Type	Convex Array,Linear Array,Endocavity Array
Transducer frequency	2 to15 Mhz
Scanning depth	up to 351mm
Monitor	15' high resolution LCD monitor with tilting to view it freely
Ultrasound platform	Based on Windows high speed hardware platform
Transducer element	128

More details

Standard Features:
Performance and features comparable to that of conventional cart‐based systems, PT60 point‐of‐care
color Doppler system, is a true simple smart in ultrasound, offers a new level of intuitive operation,
innovative productivity tools and powerful processing for empowering Point of Care(including
Anesthesiology),Emergency Medicine and General Imaging, Women's Health. The result is an all‐new
level of efficiency and image quality

Application scenarios:

* Applicable to different body scans, for example, Abdomen,Obstetrics,Gynecology,Cardiology,Small Parts,Urology,Kidney,MSK(Musculoskeletal);Carotid; Orthopedic; Vascular
* and varied user environment. Ultrasonography, emergency, operating room, ICU, ward and out‐call, etc

Multi‐frequency probes:

Convex probes C3.5/R60/D‐3 color Doppler convex array transducer(standard configuration)

---Applications:ABD, Renal, ABD‐Vascular, Ped‐ABD, GYN, OB, Fetal Heart, Urology, Prostate
Frequency Bandwidth: 2.0‐5.0MHz
Central frequency: 3.5 MHz
Radius: 60 mm
View angle: 61 degrees
Scanning Depth: 36‐351 mm
Element: 128
Biopsy guide available

PV6.5/10/64D‐3 color Doppler Micro‐convex array transducer

---Applications:Pediatric, fetal heart
Frequency Bandwidth: 4.0‐9.0 MHz
Center frequency: 6.5 MHz
Radius: 10 mm
View angle: 150 degrees
Scanning Depth: 36~184 mm
Element: 128
Biopsy guide available

EC6.5/10/64D‐3 color Doppler Trans‐vaginal probe

---Applications:Early OB, OB/GYN, Urology
Frequency Bandwidth: 4.0‐9.0 MHz
Center frequency: 6.5 MHz
Radius: 10 mm
View angle: 150 degrees
Scanning Depth: 36~184 mm
Element: 128
Biopsy guide available

Linear probes HL10.0/25/64D‐3 High Frequency color Doppler Linear probe

---Applications: Vascular,Carotid,P‐Arterial,SMP,Thyroid,Breast,Testicle,SmEye,MSK, ABD
Frequency Bandwidth:6.0‐14.0 MHz
Center frequency: 10.0MHz
Scanning width: 25 mm
Scanning Depth: 18~184 mm
Element: 128
Biopsy guide available

HL10.0/40‐64D‐3 color Doppler Linear probe

---Applications: Vascular,Carotid,P‐Arterial,SMP,Thyroid,Breast,Testicle,SmEye,MSK, ABD
Frequency Bandwidth: 5.0‐10.0 MHz
Center frequency: 7.5MHz
Scanning width: 40 mm
Scanning Depth: 18~184 mm
Element: 128
Biopsy guide available
