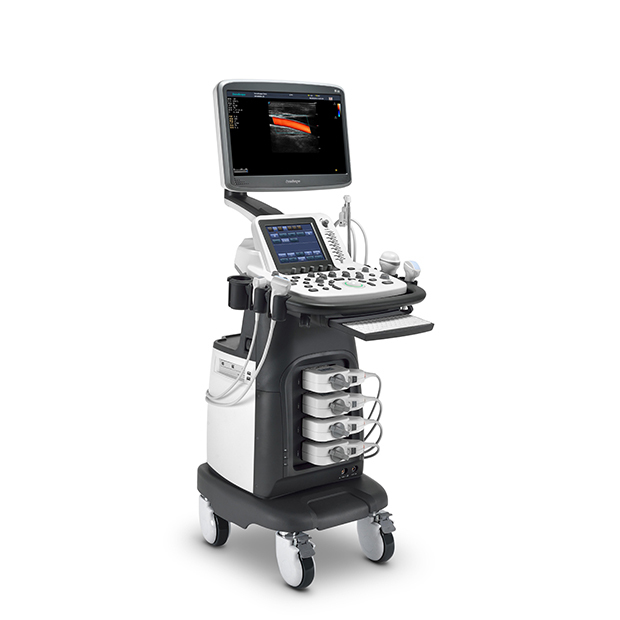

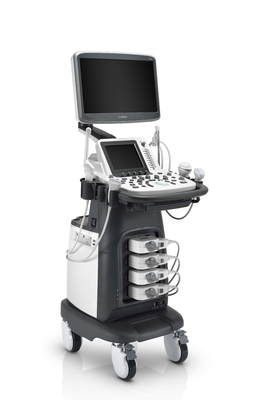

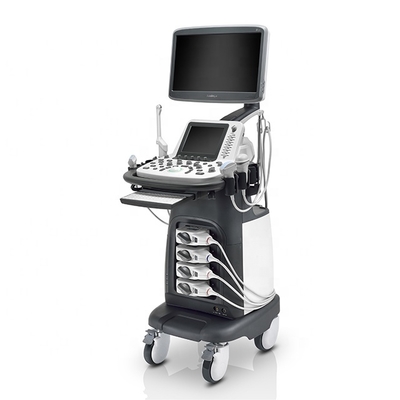

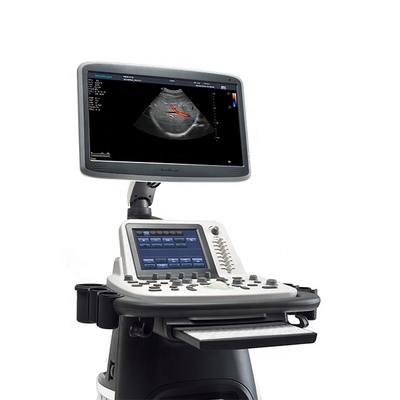

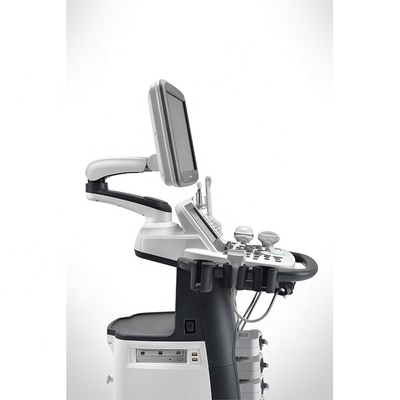

Name: Stock SonoScape S22 ultra 5G Ultrasound Machine, Wireless Ultrasound for Veterinary Ultrasound Diagnosis
Brand: MEDSINGLONG CO LTD
SKU: S22
Availability: InStock

Home Products Color doppler ultrasound machine

Stock SonoScape S22 ultra 5G Ultrasound Machine, Wireless Ultrasound for Veterinary Ultrasound Diagnosis

Product Details:

Place of Origin:	China
Brand Name:	SonoScape
Model Number:	S22

Contact Now

Detailed Product Description

Power Source:	Electric	Warranty:	3 Years
After-sale Service:	Online Technical Support	Material:	Metal, Plastic
Shelf Life:	3 Years	Quality Certification:	Ce
Instrument Classification:	Class II	Safety Standard:	MFDS
Product Name:	Stock SonoScape S22 Ultra 5G Ultrasound Machine	Display:	18.5" High Resolution LED Color Monitor And 8" Touch Screen
Imaging Modes:	B/ 2B/ 4B/ M/ THI/ CFM/ PDI/ DirPDI/ PW/ HPRF	USB:	2.0
DICOM 3.0:	Transmission/ Worklist/ Print/Storage Commitment/MPPS	Transducer Sockets:	4 Active Transdcuer Connectors
Keyboard:	Sub Extended PC Keyboard	Built-in Battery:	Can Support Continues Scanning For More Than 2.5 Hours
Output:	DVD-RW/ USB 2.0/ Hard Disk 500 G	Micro-scan:	Speckle Reduction Imaging,adjustable

Product Description

SonoScape s22 ultra ultrasound machine

Features of Sonoscape S22 ultrasound 4D color doppler ultrasound As SonoScape steps forward to add value and efficiency to ultrasound, the latest S22 was designed in a user-friendly platform to address current and future demanding needs. It represents an excellent mix in performance and price. S22, is a shared service ultrasound system with a slim and elegant package that has combined mobility with utility to fit in specific clinical situations including emergency department, ICU, operating room and so on. Furthermore, its ergonomic design, easy operating and flexible data management will give you a memorable experience.

• Large high resolution widescreen LED • Sensitive touch screen • Four transducer sockets plus one socket for pencil probe • A comprehensive selection of probes: linear, Convex, Micro-convex, Volumetric, Endocavity, Bi-plane, Phased Array, TEE, Intraoperative, Pencil • Premium application technology: 4D, μ-scan speckle reduction, compound imaging, Pulse Inversion Harmonic Imaging, Color M-Mode, Steer M-Mode, PDI, TDI, Real-time Panoramic Imaging, Trapezoid Imaging, Auto-IMT… • Full patient database and image management solutions: DICOM 3.0, AVI/JPG, USB 2.0, HDD, DVD, PDF report • Multi-Language Input Keyboard • Built-in battery

Detailed Images

Technical Specifications

Applications	have a wide range of applications includes: abdominal, OB/Gyn, cardiology, urology, small parts, vascular, orthopedic, anesthesia and MSK.
Monitor	no less than 18.5 inch LED, widescreen,anti-flickering, can be vertically and horizontally swiveled
Touch screen	required, no less than 8 inch, and select the Probe with the probe name and icon, and show different presets with the body Anotomy icon
Operation Mode	B, Dual B, Quad B, THI, Trapezoid Imaging, Real-time Panoramic Imaging(B mode and Color mode)
		M, Color M, Anatomic M
		Stress Echo
		Color Doppler, Power Doppler Imaging, Directional PDI, TDI
		PW with HPRF, CW
		Dual-Live
		Duplex: B and Doppler/M, can be defined in new preset
		Triplex: B, Color Flow, and PW/CW Doppler,can be defined in new preset
		3D Imaging
		4D Imaging
		Contrast Imaging
		C-xlasto( elastography imaging)
Transducer Sockets	at least 4 active transdcuer connectors, which can support all transducers. Should have a special transdcuer connector for pencil probe.
