Name: Portable 3D 4D Color Doppler USG&Sonoscape S9
Brand: MEDSINGLONG CO LTD
SKU: S9
Availability: InStock

Home Products Ultrasound machine

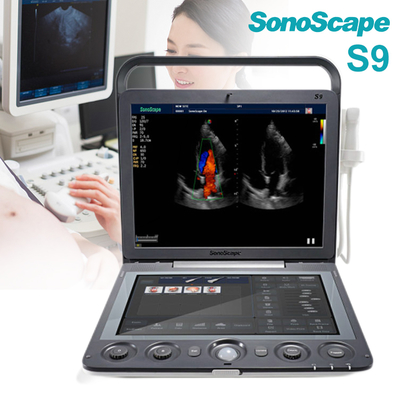

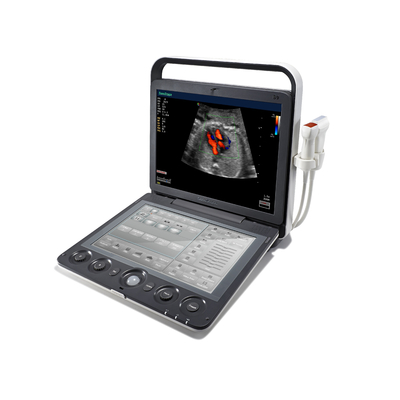

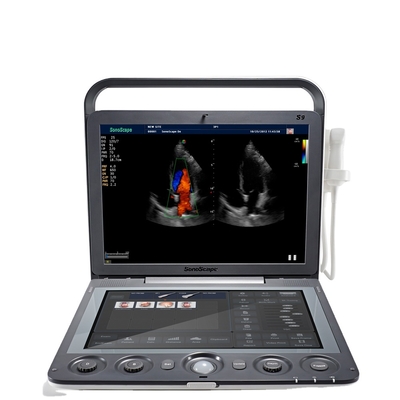

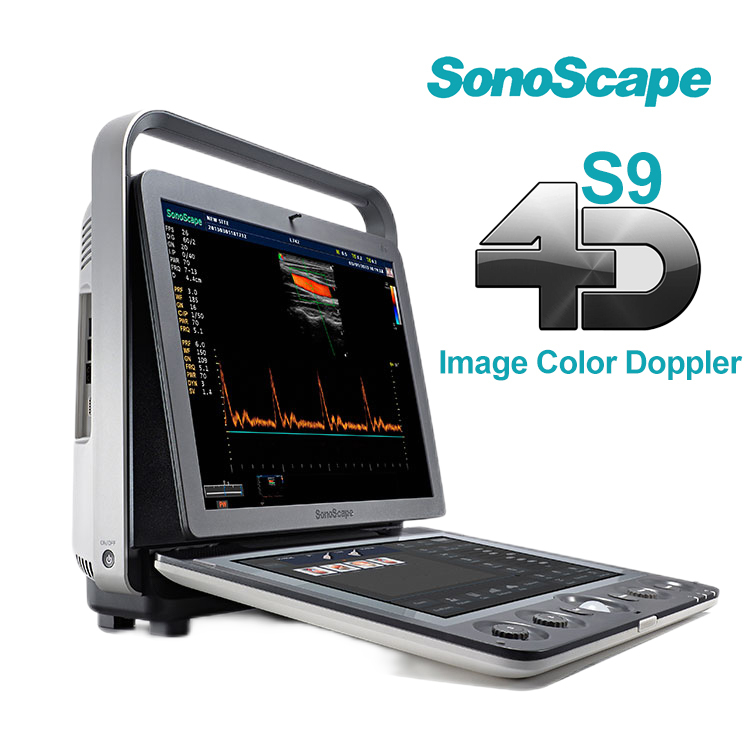

Portable 3D 4D Color Doppler USG&Sonoscape S9

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Sonoscape
Model Number:	S9

Contact Now

Detailed Product Description

Power Source:	Electric	Warranty:	3 Years
After-sale Service:	Online Technical Support	Shelf Life:	3 Years
Quality Certification:	Ce	Instrument Classification:	Class II
Product Name:	Sonoscape S9	Model:	S9
Panoramic Imaging:	Real-time Panoramic/Unreal-time Panoramic<=150cm	Triplex Mode:	B/C/D
Dual Split Mode:	B/C,B/M,B/DPI,B/PW,B/TDI	Physical Channel:	128
Monitor:	15" LCD (50° Adjustable)	Touch Screen:	13.3'' (135° Changeable)
Transduce Socket:	2	2.4 GHz Remote Control:	Yes

Related Products

Product Parameters

Brand			Sonoscape
Model			S9
Multi-beam Processing Technology			Quad-beam Technology
Compound Imaging			Frequency/Spacial Compound Imaging

Panoramic Imaging			Real-time panoramic/Reconstructed Panoramic
Speckle Reduction Tecnology			μ-Scan 4 layer
Dynamic Range			20-280dB
Zoom			Real Time/Frozen

Monitor			15" LCD (50° adjustable)
Touch Screen			13.3'' (135° changeable)
Transduce Socket			2
Battery			Removable Li-ion battery

Product Description

Portable 3D 4D Color Doppler USG&Sonoscape S9

Since releasing its first portable color Doppler ultrasound system, SonoScape has dedicated itself to the ultrasound field. From this dedication, a great deal of ultrasound technologies, especially in hand-carried systems have emerged. From this dedication, the S9 was released as a powerful and versatile imaging platform with a futuristic design. Compact, yet featuring comprehensive applications for cardiology, radiology, abdomen, obstetrics, gynecology, small parts and urology, S9 provides the best solution for ultrasound imaging through outstanding performance.

Spatial Compound Imaging
Spatial Compound Imaging utilizes several lines of sight for optimal contrast resolution, speckle reduction and border detection, with which the S9 is ideal for superficial and abdominal imaging for better clarity and improved continuity of structures.

Pulse Inversion Harmonic Imaging
The harmonic signals are fully preserved without degradation of the acoustic information, which makes it possible for the S9 to image high-level details and improve contrast resolution by reducing noise and clutter in the visualization of subtle lesions, small parts, vascular and so on.

C-Xlasto elastography
SonoScape provides the S9 with a new method to support the physician in assessing tissue elasticity. The differences in tissue responses are detected and visualized in real-time by the elastography algorithms through different graphical representations which can be particularly helpful in analyzing breast, thyroid and musculoskeletal structures.

Real-time 3D (4D)
With increased physical channels and a new platform, the S9 offers both high quality imaging and high frame rates to meet a new standard of SonoScape's S series. Thanks to high frame rate and advanced technologies, the 4D imaging of S9 delivers smooth movement of the fetus and offers comprehensive 4D acquisition, data rendering, and post-processing functionality.

High Density Probe
S9 is equipped with a high density phased array probe to meet the needs of both high frame rate and premium resolution in cardiac imaging. Thanks to the high sensitivity of SonoScape's color Doppler mapping, the S9 can provide an accurate cardiac diagnosis beyond your imagination.
