Name: MSL Highest Cost-effective Double Probes Wireless Color Doppler Ultrasound Scanner
Brand: MEDSINGLONG CO LTD
SKU: MSLPU80
Availability: InStock

Home Products Ultrasound machine

MSL Highest Cost-effective Double Probes Wireless Color Doppler Ultrasound Scanner

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	MSL
Model Number:	MSLPU80

Contact Now

Detailed Product Description

Power Source:	Electricity	Warranty:	2 Years
After-sale Service:	Online Technical Support	Material:	Metal
Shelf Life:	2 Years	Quality Certification:	Ce
Instrument Classification:	Class II	Safety Standard:	GB/T 32610
Product Name:	Double Probes Wireless Color Doppler Ultrasound Scanner	Model:	MSLPU80
Probe Type:	Convex Phased Probe + Linear Probe	Scan Mode:	B, B/M, Color, PW
Frequency:	Convex&Phased Probe 3.5/5.0MHz,Linear Probe 7.5/10MHz	Image Frame Rate:	20 Frames/second
Display Depth:	Convex 90~305mm,Linear 20~100mm	Cinplay:	>50s
Image Adjust:	Gain,Depth,DR,Focus,SRI,Harmon

Image Performance

Product Description

Introduction: The king of cost performance. Both USB and WIFI connected to mobile phones,tablets. Innovative design in 2020:Linear/Convex/Phased Array 3 in 1 Pocket Ultrasound.Can be used in cardiac examination. Smart Wireless Color Ultrasound Probe, Most Suitable for POCT;As a visualization tool for clinicians,makes the clinical procedures more Confident,more Easy, more Efficient, more Precise,more Safe,more Standardized and lower Cost, lower Anxiety,less Pain.

It can: Make ultrasound easier and more efficient to use. Provide visual images during any clinical procedures.

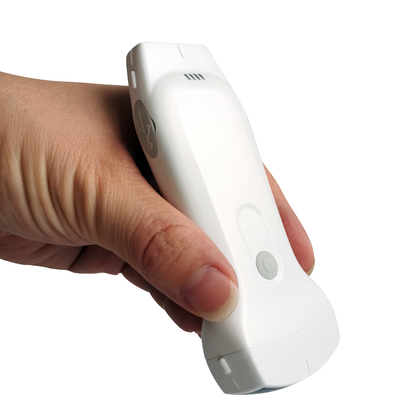

Features: One scan whole body：composed of convex and linear array, it can scan from abdomen to superficial, even heart. Highest cost-effective：Students can afford it, just like buying a cell phone. Small and light, easy to carry and operate, very suitable for emergency clinical, hospital ward inspection, community clinical and outdoor inspect. Wireless connected to Tablet or Smart Phone , can be conveniently used in surgery without fixing of cables. And by using the disposable protecting cover, it can easily solve the sterilization issue of the probe. For powerful communication capability of the smart terminals, the wireless probe can meet the needs of the telemedicine. Software is free for life. Waterproof design, convenient for sterilization.

Specification

How it works?

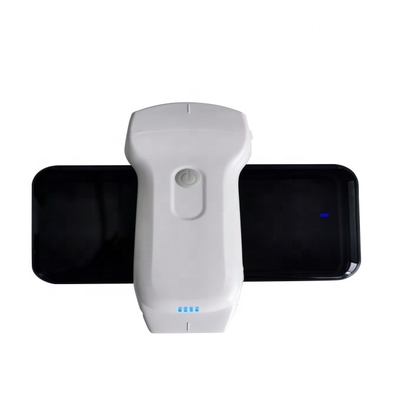

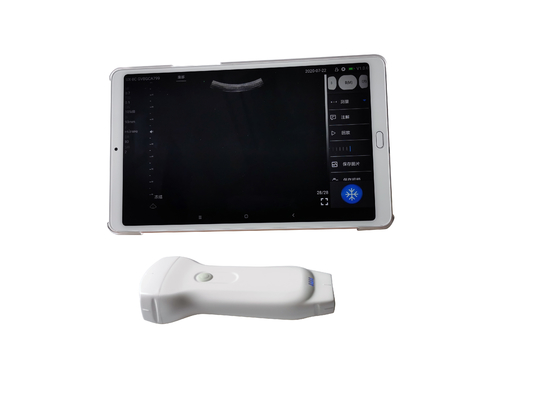

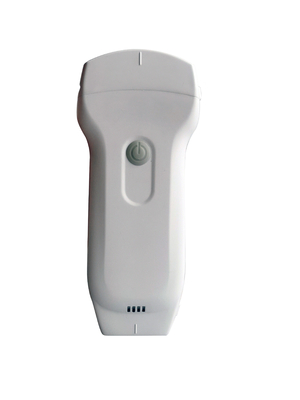

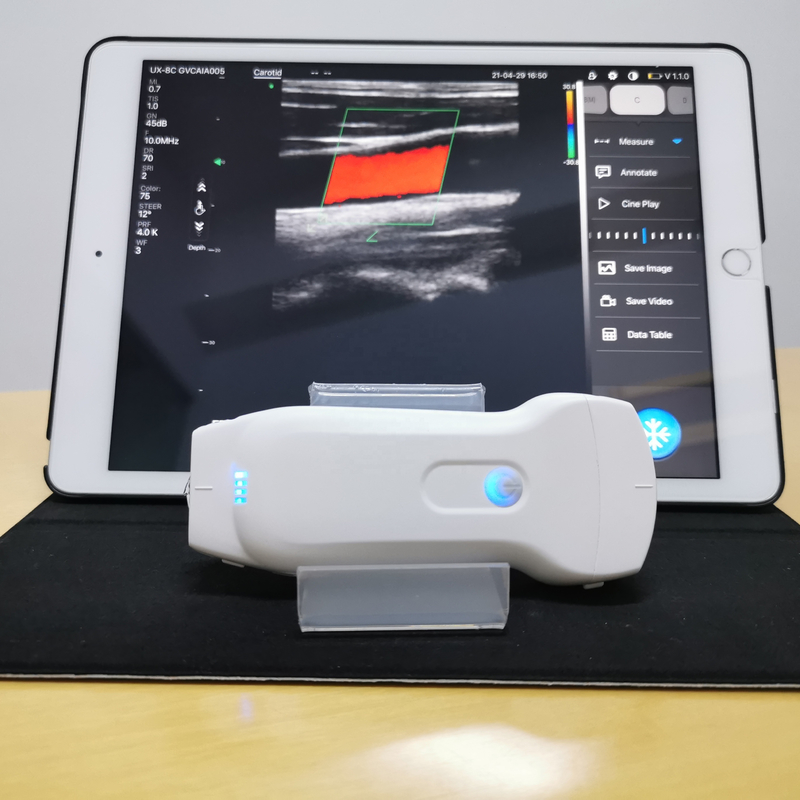

"Wireless ultrasound probe" is a mini ultrasound scanner that without screen. We made the main unit condensed into a small circuit board builded-in the probe, and showing image in smart phone/tablet through Wifi transferring. -Image transferring through internal wifi from probe, no need external Wifi signal.

Application directions:

Emergency inspection: ER, ICU, Wild First Aid, battle field rescue. Preliminary examination: Ward Inspection, primary clinic examination medical examination, health screening,home care, family planning, etc. Visualization tools: invasive intervention guide, surgical and therapy guidance. Remote diagnosis, consultation, training: works on smart phone or tablet, easy.

Model	MSLPU80
Probe Type	Convex&Phased probe + Linear probe
Scan angle/Length	Convex 50,Linear 25mm
Frequency	Convex&Phased probe 3.5/5.0MHz,Linear probe 7.5/10MHz
Scan mode	B, B/M, Color, PW
Display Depth	Convex 90~305mm,Linear 20~100mm
Image Adjust	Gain,Depth,DR,Focus,SRI,Harmonic
Measure	Length,Area,Velocity,HR,S/D,Obstetrics,auto blood vessel measurement
Puncture assist function	in-plane puncture guide line,out-of-plane puncture guide line, Needle Enhance
Image frame rate	20 frames/second
Cinplay	>50s
Power	Built-in lithium battery, wireless or usb charge 2h, work 2.5h
Working system	iOS,Android,Windows
Wifi type	802.11n/2.4G/5G
Dimension	121x53x19mm
Weight	120g
