Name: Doppler Color Ultrasonic Ultrasonido Portatil SonoScape E2
Brand: MEDSINGLONG CO LTD
SKU: E2
Availability: InStock

Home Products Portable Ultrasound

Doppler Color Ultrasonic Ultrasonido Portatil SonoScape E2

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	SonoScape
Model Number:	E2

Contact Now

Detailed Product Description

Power Source:	Electric	Warranty:	2 Years
After-sale Service:	Free Spare Parts	Material:	Metal, Plastic
Shelf Life:	2 Years	Quality Certification:	Ce
Instrument Classification:	Class II	Safety Standard:	GB15979-2002
Product Name:	Doppler Color Ultrasonic Ultrasonido Portatil SonoScape E2	Application:	MSK, GI, OB/GYN, Cardiac, POC, Etc.
Imaging Mode:	B/ 2B/ 4B/ M/ CFM/ PDI/ DirPDI/ PW	Hard Disk:	500G
μ-Scan:	2D Speckle Reduction Technology

Product Description

Doppler color ultrasonico ultrasonido portatil SonoScape E2

1.15.6 inch High Resolution LCD color monitor (with auto-adaptive LED backlight) 2.USB 2.0/Hard Disk 500 G

3.Imaging modes: B/ 2B/4B/ M/ CFM/ PDI/ DirPDI/ PW

Advantage of Sonoscape E2

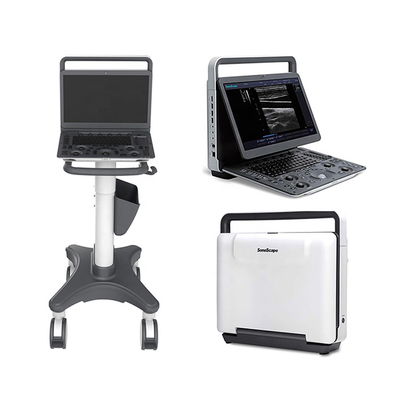

With 4D OB/GYN, and a full suite of transducers ranging from 2 MHz to 16MHz, the SonoScape E2 portable ultrasound system has the most competitive image quality at its price-point. It is a great solution for private practices, hospitals, mobile services, and clinics looking for a full body machine to use in their office or to share between offices. Its portability allows it to be transferred easily (on or off a mobile cart). The SonoScape E2 is also lightweight and can be carried from room-to-room or office-to-office without any difficulty. A mobile cart makes it easier to transfer from room-to-room and also has a cradle for the transducers. For applications, it is truly unique in this price range. In addition to standard applications and transducers, the SonoScape E2 also has the following capabilities: 4D real-time obstetrical imaging, bi-plane rectal imaging, panoramic imaging, transducers ranging up to 16 MHz... as well as the standard features you'd find on most ultrasound machines. It also has 3 active transducer ports. You can use the SonoScape E2 in nearly every clinical situation, which makes it a great choice for small offices, family practice, or hospitals introducing ultrasound into new departments.

Detailed Images

Technical Specifications

Gain	0-255
Frame rate	106 fps (probe dependent)
Size and position of color ROI	adjustable
Inversion	Up/Down, Left/Right
Flow invert	On/Off
Frequency range	3 steps, adjustable
Hide flow	On/Off (freeze mode)
Wall filter	Min, Low, Med, High, Max adjustable
PRF	0.5 - 10KHz (probe dependent)
Line density	Min, Low, Med, High adjustable
Color/direction energy	7 levels adjustable for color Doppler mode
Color baseline adjustment	9 levels adjustable
Persistence	Off, Low, Med, High, Max selectable (probe dependent)
B reject	0 - 255 adjustable
Linear steer angle	0, ±8°, ±12°, ±16° adjustable
