Name: Wireless Linear Probe High Frequency Probe Special Tool for Visual Puncture Guidance Integrated Handheld Ultrasound Scanner
Brand: MEDSINGLONG CO LTD
SKU: MSLPU74
Availability: InStock

Home Products Ultrasound Probe

Wireless Linear Probe High Frequency Probe Special Tool for Visual Puncture Guidance Integrated Handheld Ultrasound Scanner

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	MSL
Model Number:	MSLPU74

Contact Now

Detailed Product Description

Power Source:	Electric	Warranty:	1 Year
After-sale Service:	Online Technical Support	Material:	Metal
Shelf Life:	1years	Quality Certification:	Ce
Instrument Classification:	Class I	Safety Standard:	GB2626-2006
Scan Angle/Length:	30mm	Frequency:	7/10 MHz
Scan Mode:	B, Color, PW, Volume	Display Depth:	20~60mm
Power:	Built-in Lithium Battery, USB Charge 3h, Work 3h	Working System:	IOS, Android
Wifi Type:	802.11n/2.4G/5G	Dimension:	150x53x22mm
Weight:	185g

Product Description

Brief Introduction

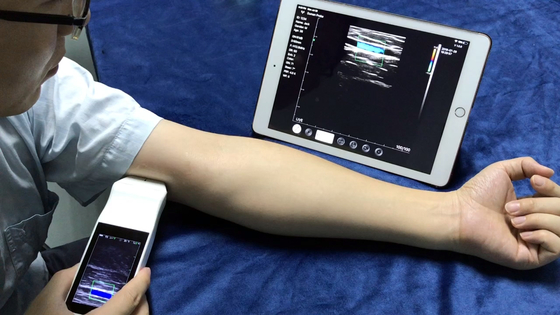

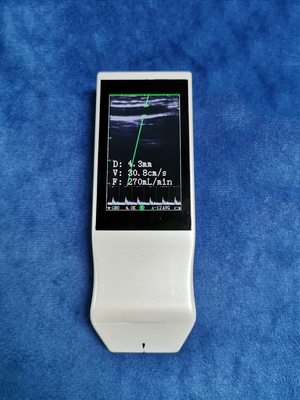

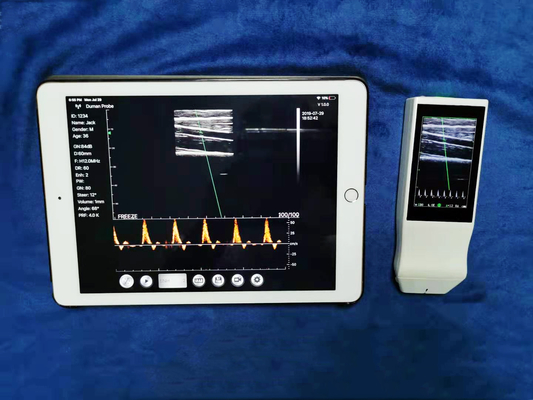

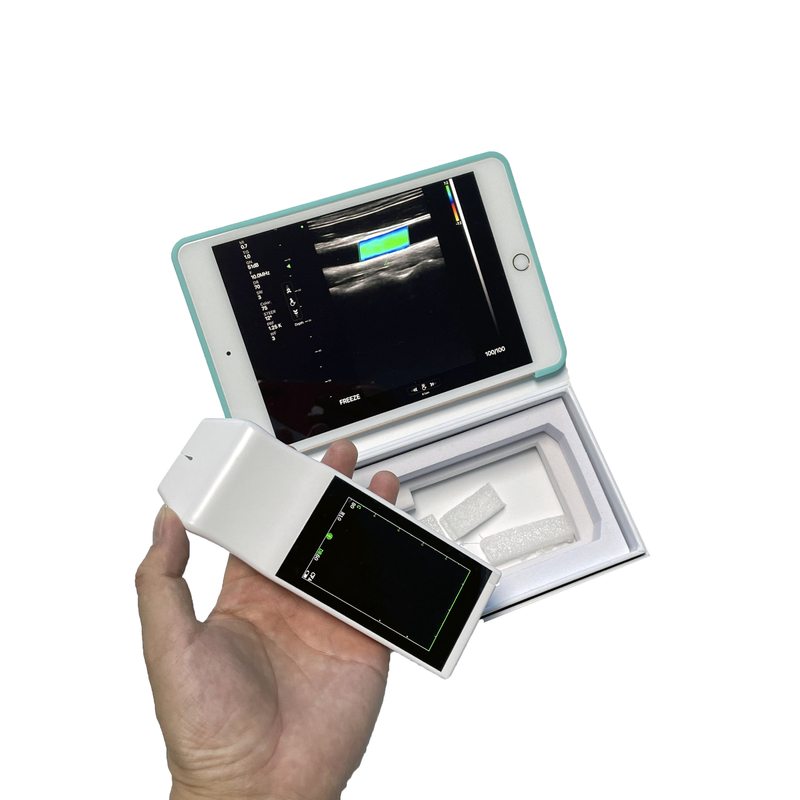

The product is the smallest integrated (single-machine version) handheld ultrasound scanner in the world. It includes an integrated host, ultrasound head, display screen and touch screen. It is integrated in the shell of a mobile phone. It can realize clinical diagnosis, evaluation and puncture guidance on a single machine. At the same time, it can connect to a tablet computer or mobile phone through 5G wifi to realize image observation,patient information input, image storage, measurement and image optimization,and so on.

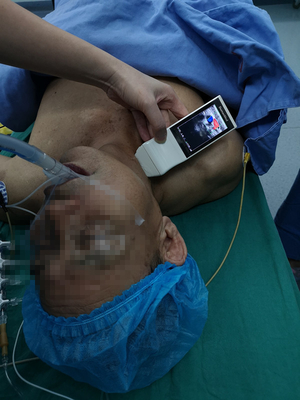

Features: --Smallest: The smallest integrated (including touch and display screen) handheld ultrasound scanner in the world, just like Iphone7. --Easy: Boot in one second, easy to start;Can work alone or connect wirelessly, easy to operate ;Small and light, easy to carry. --Dual Screen Vision: Integrated screen and Smart phone or tablet screen, easy to observe. Professional: Inclined dead design; matchable special guide frame for vascular puncture for accurate puncture. --Intelligent: One-handed touch operation; intellegent preset,intelligent memory;Auto measurement. --Waterproof and dustproof: Full Sealing Design,easy to clean. --Can workable with Tablet PC or Smart Phone (iOS, Android). --Built-in lithium battery. --Advanced digital imaging technology, clear image. --High cost-effective. --Wireless charging. --Applicable in nephrology department, hemodialysis center, anesthesia department, intensive care unit, catheter department, interventional department, hematology department, general surgery, burn department, emergency department and other medical institutions

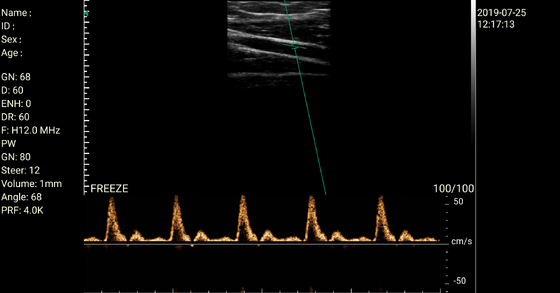

Specifications: *Scan mode: Electronic linear array scanning. *Frequency: 7MHz & H10MHz. *Elements: 128 elements. *Scanning Depth: 20-60mm, Adjustable. *Screen: Dual screen vision, Integrated screen and Smart phone or tablet screen. *Supporting system: iOS, Android. *Display mode: B, Color, PW, Volume. *Frame rate: B mode 16f/s. *Image/video Storage: Store on mobile phones,Tablet PC. *Measure: distance,area,velocity,heart rate,s/d,auto blood volume. *Power: by built-in lithium battery. *Power consumption: 3.5W (unfreeze) /2W (freeze). *Battery Continuous working time: 2.5-3 hours. *Size: 150mm×53mm×22mm. *Net Weight: 185 gram.

Specs and Details Images
