Name: Portable Hand Held Used Cheap Phased Array Ultrasound Machine Probe
Brand: MEDSINGLONG CO LTD
SKU: MSLPU81
Availability: InStock

Home Products Ultrasound Probe

Portable Hand Held Used Cheap Phased Array Ultrasound Machine Probe

Product Details:

Place of Origin:	China
Brand Name:	MSL
Model Number:	MSLPU81

Contact Now

Detailed Product Description

Power Source:	Electricity	Warranty:	3 Years
After-sale Service:	Online Technical Support	Material:	Metal, Plastic
Shelf Life:	3 Years	Quality Certification:	Ce
Instrument Classification:	Class II	Safety Standard:	GB15979-2002
Product Name:	Wireless Ultrasound Phased Array Probe Cardiac Probe	Scan Angle:	80
Frequency:	2.2MHz/H3.6MHz	Scan Mode:	B, B/M, Color, PW
Display Depth:	90~190mm	Image Adjust:	Gain, Depth, DR, Focus, SRI, Denoise
Measure:	Length,Area,Velocity,HR,S/D,LVIDd,LVIDs,SV,EF	Power:	Built-in Lithium Battery, Wireless Or Usb Charge 2h
Wifi Type:	802.11n/2.4G/5G	Image Frame Rate:	20 Frames/second

Product Description

portable hand held used cheap phased array ultrasound machine probe

Features
* Suitable for cardiac, head and abdomen scanner.
* Highest cost-effective：Students can afford it, just like buying a cell phone.
* Small and light, easy to carry and operate, very suitable for emergency clinical, hospital ward inspection, community clinical and outdoor inspect.

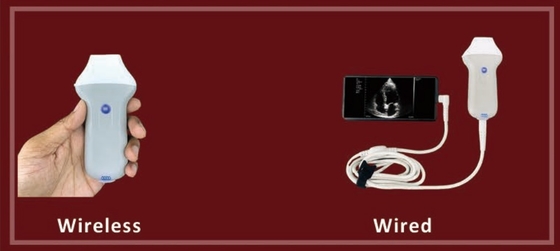

* Wireless connected to Tablet or Smart Phone, can be conveniently used in surgery without fixing of cables. And by using the disposable protecting cover, it can easily solve the sterilization issue of the probe.
* For powerful communication capability of the smart terminals, the wireless probe can meet the needs of the telemedicine.
* Software is free for life.

Detailed Images

Technical Specifications

Probe Type	Phased array
Scan angle	80
Frequency	2.2MHz/H3.6MHz
Scan mode	B, B/M, Color, PW
Display Depth	90~190mm
Image Adjust	Gain,Depth,DR,Focus,SRI,Harmonic,Denoise
Measure	Length,Area,Velocity,HR,S/D,LVIDd,LVIDs,SV,EF
Puncture assist function	in-plane puncture guide line,out-of-plane puncture guide line, Needle Enhance
Image frame rate	20 frames/second
Cinplay	50s
Power	Built-in lithium battery, wireless or usb charge 2h
Working system	i OS, Android,Windows
Wifi type	802.11n/2.4G/5G
Dimension	125x60x20mm
Weight	120g
