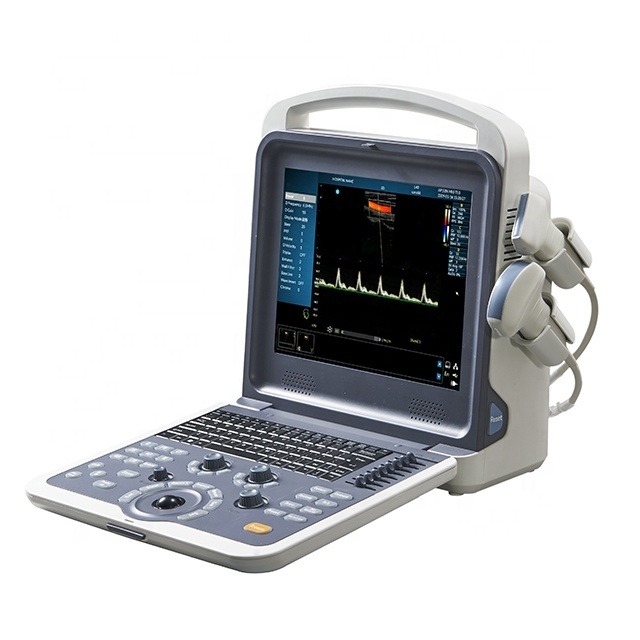

Name: 2d /3d/4d Medical Ultrasound Machine
Brand: MEDSINGLONG CO LTD
SKU: MSLCU62
Availability: InStock

2d /3d/4d Medical Ultrasound Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	MSL
Model Number:	MSLCU62

Contact Now

Detailed Product Description

Language:	Japanese, German, Spanish, Italian	Power Source:	Electric
Warranty:	2 Years	Type:	CONVEX
Display Type:	10.1inch Tft Lcd	After-sale Service:	Online Technical Support
Application:	GI, MSK, POC, OB, Cardiac, Gynecology	Shelf Life:	1years
Display Mode:	Color	Quality Certification:	Ce
Instrument Classification:	Class II	Probe:	Convex Probe
Product Name:	Ultrasound Machine	Display Mode:	B/2B/4B/M/B+M
Display:	12.1 Inch LED Screen	Ports:	2 USB Ports
Indicators:	Power/Battery/Standby/HDD Status	Image Storage:	8-TGC Assuring Accurate Image Control
Feature:	100% Guaranteed	GW:	11KG
Function:	Obstetrics, Gynecology, Pediatrics, Etc	Packing:	525mm420mm505mm

Product Description

Diagnostic confidence and wide clinical applications . Full digital technology . IP (image process) for fast image optimization . 8-TGC assuring accurate image control . A broad range of transducers for obstetrics, gynecology, abdomen, urology, small parts, orthopedics and pediatrics applications Improve efficiency by optimizing the workflow . Fast boot-up within 20s . User-defined keys to define personalized operations . One key images or cines saved to local disk or USB

Specification

2d /3d/4d medical ultrasound machine		MSLPU09
Standard Configuration: . 12.1-inch LED monitor . One transducer connector . Control Panel . Handle . Indicators: Power/Battery/Standby/HDD status . I/O Interfaces . 2 USB ports . 1 VGA OUT port . 1 Video OUT . 1 S-Video OUT . Measurement & Calculation software packages	Optional: . Second transducer connector . DICOM 3.0: Image storage and printing . Footswitch . Mobile trolley: UMT-110 . Carrying Case . Keyboard dust-proof cover . Needle-guided brackets
		Probe ≤3（80＜depth≤130)	80 elements R60
		Scanning depth	≥160mm
		Lateral resolution mm	≤3（depth≤80）≤4（8＜depth≤130）
		Axial resolution mm	≤2（depth≤80 ≤3（80＜depth≤130)
		Blind zone mm	≤5
		Horizontal geometric position accuracy	≤15
		Longitudinal geometric position accuracy %	≤10
		Probe slice thickness index mm%	≤10
		Perimeter and area measurement deviations %	±20
		M-mode time and distance deviation	±10
		N.W	5KG
		G.W	10KG
		Package Size	47.022.040.0CM
