Name: Black&white Portable Medical Ultrasound Scanner Machine for Vet Use
Brand: MEDSINGLONG CO LTD
SKU: MSLPU33A
Availability: InStock

Home Products BW ultrasound machine

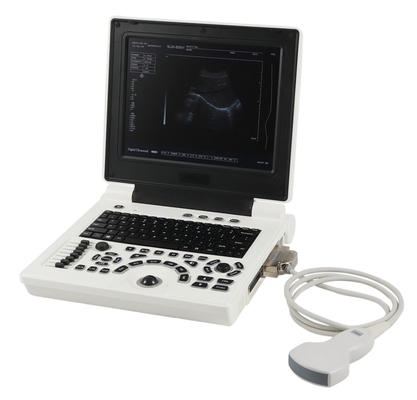

Black&white Portable Medical Ultrasound Scanner Machine for Vet Use

Product Details:

Place of Origin:	China
Brand Name:	MEDSINGLONG
Model Number:	MSLPU33A

Contact Now

Detailed Product Description

Power Source:	Electric	Warranty:	1 Year
After-sale Service:	Online Technical Support	Material:	Plastic
Shelf Life:	1years	Quality Certification:	Ce
Instrument Classification:	Class I	Safety Standard:	None
Display Mode:	B;B/B;4B;B +M;M	Display Size:	12.1inch LED
E-zoom:	Magnify 2 Times Of Real Time Image	Dynamic Range:	0~120db Adjustable
Focus Position:	Dynamic Electron Focusing	Gray Scale:	256 Levels
Storage:	128 Images	Output Interface:	USB Port
Gain Control:	8segments TGC And Overall Gain Can Be Adjusted Respectively	Image Polarity:	Left And Right Flip; Up And Down Flip

Black&white portable medical ultrasound scanner machine for vet use

Product Description

Specification of Black&white portable medical ultrasound scanner machine for vet use

Display mode	B;B/B;4B;B +M;M
Display size	12.1inch LED displayer
Image multiplying factor	3.5MHz/R60 convex array probe: x0.8;x1.0,x1.2,x1.5,x1.8, x2.0( 6 modes)x0.8;x1.0(display penetration depth)
E-zoom	Magnify 2 times of real time image
Dynamic range	0~120db adjustable
Focus position	Dynamic electron focusing
Image proessing	8γcorrections, Point correlation, Frame correlation, Line correlation, Digital filting,Digital edge enhancement and pseudo color processing According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Gray scale	256 levels
Frequency conversion	2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz 5 periods of frequency conversion Frequency range applies 5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe
Measuring function	Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc.
Annotation function	Hospital name;patient’s name, age and gender; Body marks(with probe’s position);Full-screen character annotation;Real-time clock display
Puncture guide	3.5MHz convex array probe can display punture guide in B mode
Gain control	8segments TGC and overall gain can be adjusted respectively
Image polarity	Left and right flip; up and down flip
Capacity cine loop	Real time display 256 consecutive images which are moemorized successively
Image playback	Series playback or check one by one
Permanent storage	128 images
Output interface	USB port
Standard configuration	Ultrasound machine with 3.5Mhz convex array probe and power adapter

Features

Features of Black&white portable medical ultrasound scanner machine for vet use

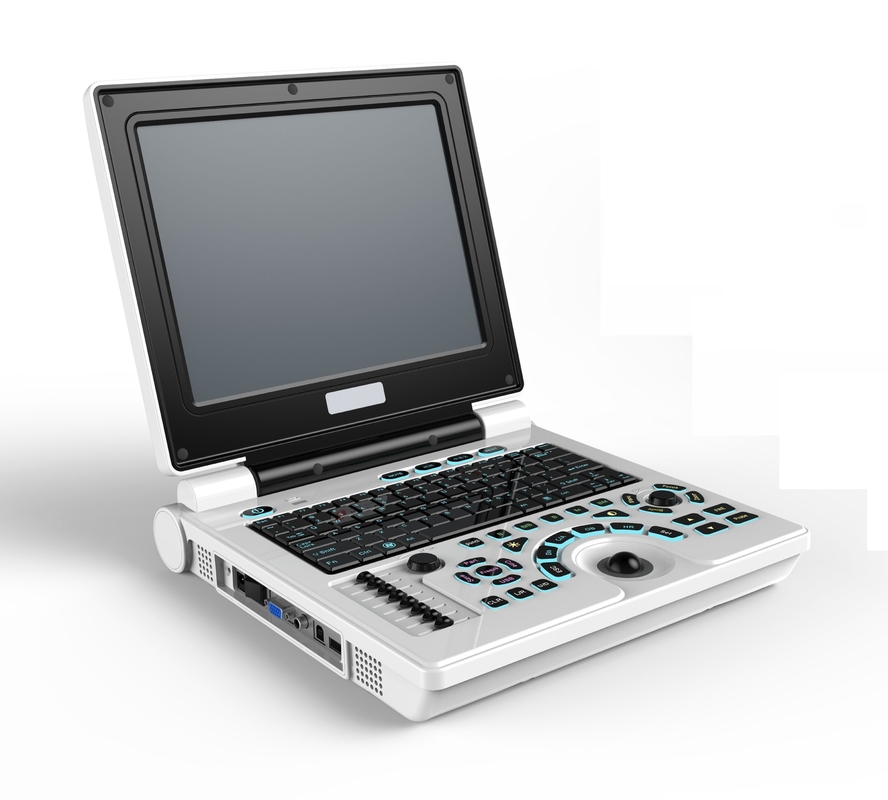

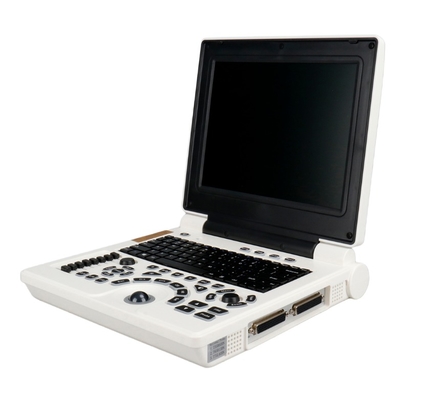

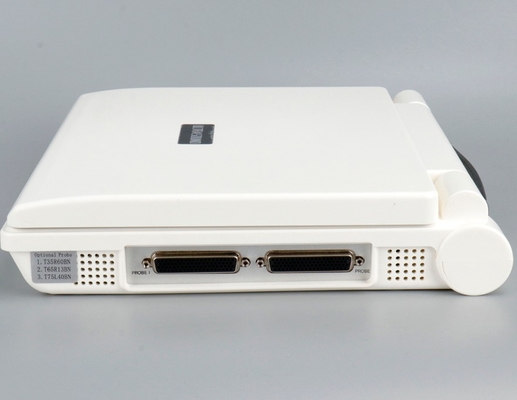

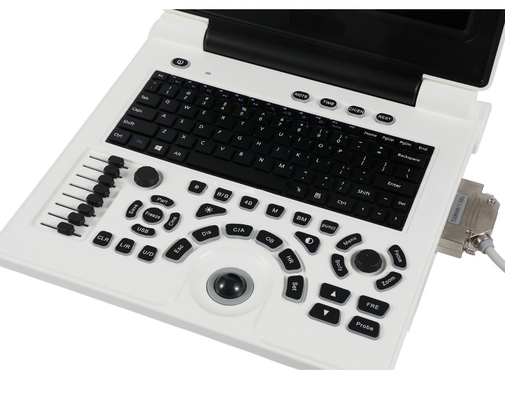

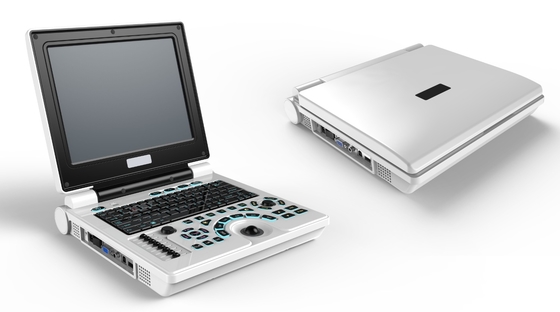

Detailed Images
