Name: Wireless Android Ultrasound Highest Cost-effective Double Probes Wireless Color Doppler Ultrasound Scanner 3 in 1 Ultrasound
Brand: MEDSINGLONG CO LTD
SKU: MSLPU80
Availability: InStock

Home Products Ultrasound Probe

Wireless Android Ultrasound Highest Cost-effective Double Probes Wireless Color Doppler Ultrasound Scanner 3 in 1 Ultrasound

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	MSL
Model Number:	MSLPU80

Contact Now

Detailed Product Description

Power Source:	Electric	Warranty:	2 Years
After-sale Service:	Online Technical Support	Material:	Metal, Plastic
Shelf Life:	2 Years	Quality Certification:	Ce
Instrument Classification:	Class II	Safety Standard:	MOL
Product Name:	Double Probes Wireless Color Doppler Ultrasound Scanner	Scan Angle/Length:	Convex 50,Linear 25mm
Probe Type:	Convex&Phased Probe + Linear Probe	Image Frame Rate:	20 Frames/second
Power:	Built-in Lithium Battery, Wireless Or Usb Charge 2h, Work 2.5h	Working System:	IOS,Android,Windows
Display Depth:	Convex 90~305mm,Linear 20~100mm	Image Adjust:	Gain,Depth,DR,Focus,SRI
Weight:	120g	Dimension:	121x53x19mm

Product Description

1. Introduction

The king of cost performance.
Both USB and WIFI connected to mobile phones,tablets.
Innovative design in 2020:Linear/Convex/Phased Array 3 in 1 Pocket Ultrasound.Can be used in cardiac examination.
Smart Wireless Color Ultrasound Probe, Most Suitable for POCT;As a visualization tool for clinicians,makes the clinical procedures
more Confident,more Easy, more Efficient, more Precise,more Safe,more Standardized and lower Cost, lower Anxiety,less Pain.
* Make ultrasound easier and more efficient to use.
* Provide visual images during any clinical

2. How it works?

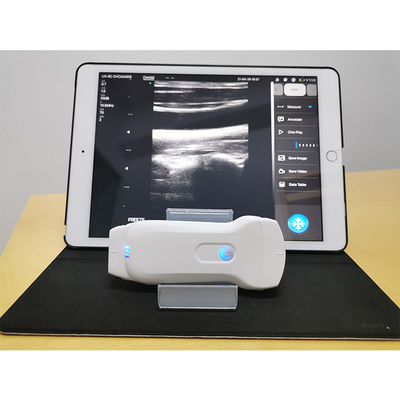

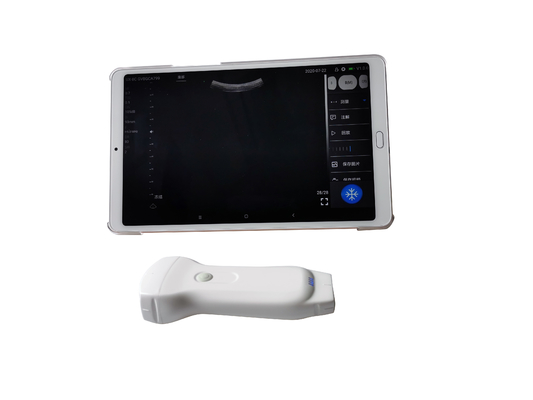

-"Wireless ultrasound probe" is a mini ultrasound scanner that without screen. We made the main unit condensed into a small
circuit board builded-in the probe, and showing image in smart phone/tablet through Wifi transferring.
-Image transferring through internal wifi from probe, no need external Wifi signal.

3. Features

One scan whole body：composed of convex and linear array, it can scan from abdomen to superficial, even heart.
* Highest cost-effective：Students can afford it, just like buying a cell phone.
* Smalland light, easy to carry and operate, very suitable for emergency clinical, hospital ward inspection, community clinical and outdoor inspect.
* Wireless connected to Tablet or Smart Phone, can be conveniently used in surgery without fixing of cables. And by using the disposable protecting cover, it can easily solve the sterilization issue of the probe.
* For powerful communication capability of the smart terminals, the wireless probe can meet the needs of the telemedicine.
* Software is free for life.
* Waterproof design, convenient for sterilization.

Detailed Images

Technical Specifications

Model	MSLPU80
Probe Type	Convex&Phased probe + Linear probe
Scan angle/Length	Convex 50,Linear 25mm
Frequency	Convex&Phased probe 3.5/5.0MHz,Linear probe 7.5/10MHz
Scan mode	B, B/M, Color, PW
Display Depth	Convex 90~305mm,Linear 20~100mm
Image Adjust	Gain,Depth,DR,Focus,SRI,Harmonic
Measure	Length,Area,Velocity,HR,S/D,Obstetrics,auto blood vessel measurement
Puncture assist function	in-plane puncture guide line,out-of-plane puncture guide line, Needle Enhance
Image frame rate	20 frames/second
Cinplay	>50s
Power	Built-in lithium battery, wireless or usb charge 2h, work 2.5h
Working system	iOS,Android,Windows
Wifi type	802.11n/2.4G/5G
Dimension	121x53x19mm
Weight	120g
